Description:

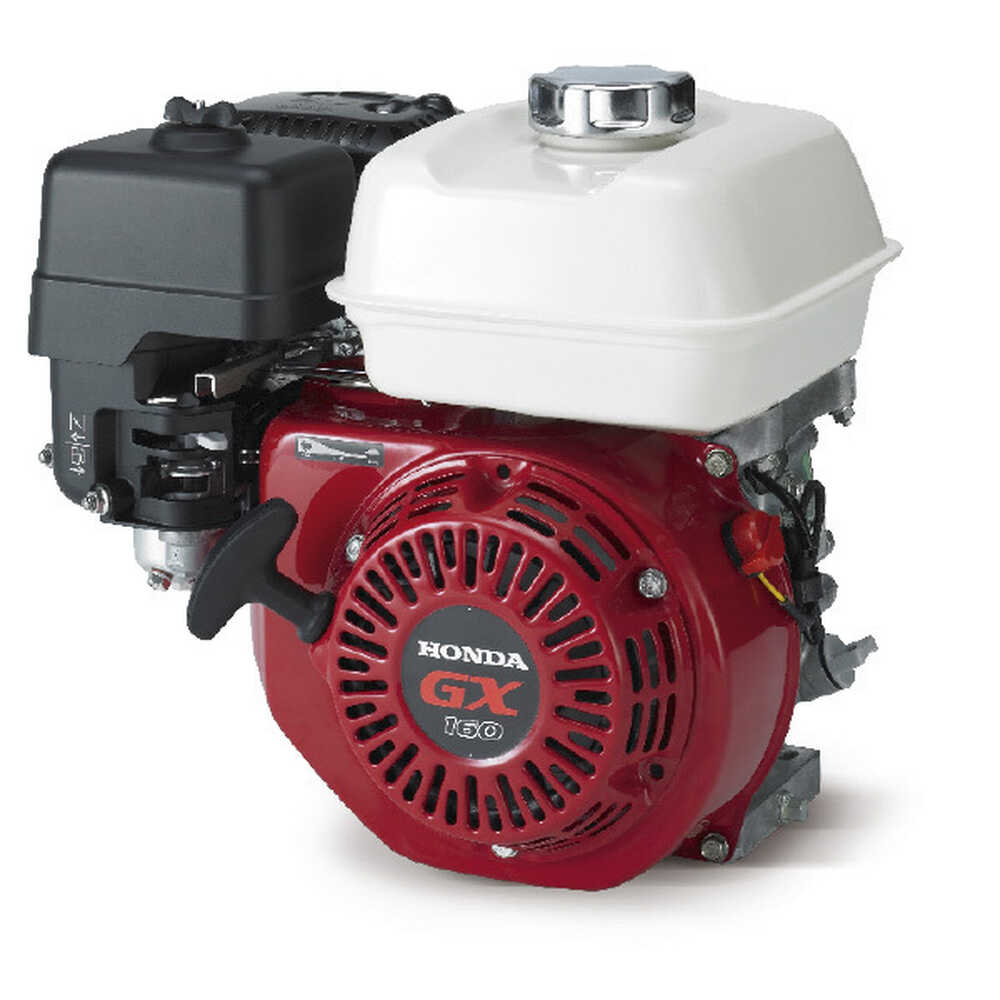

The GX160 engine is suitable for a wide range of heavy duty applications such as in construction equipment, tillers, generators, welders, pumps and other industrial applications.

Features:

• OHV design enhances combustion efficiency
• High power-to-displacement ratio
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components which ensure reliable, long-term use
• Meets world's most stringent environmental legislation
• Low fuel and oil consumption
• Reduced vibration and noise levels

Specifications:

• Type: 4-stroke, single-cylinder, OHV petrol engine
• Cylinder: 25° inclined, horizontal shaft
• Cylinder Sleeve: Cast iron

Performance:

• Bore x Stroke: 68 x 45 mm
• Displacement: 163 cm³
• Compression Ratio: 9.0:1
• Net Power: 3.6 kW (4.8 HP) @ 3600 rpm
• Continuous Rated Power:2.5 kW (3.4 HP) @ 3000 rpm
• 2.9 kW (3.9 HP) @ 3600 rpm
• Max. Net Torque: 10.3 Nm (1.05 kgfm) @ 2500 rpm

Fuel & Oil:

• Ignition System: Transistorized
• Starter: Recoil (electric start optional)
• Fuel Tank Capacity: 3.1 L
• Fuel Consumption at Rated Power: 1.4 L/h @ 3600 rpm
• Engine Oil Capacity: 0.6 L

Dimensions & Weight:

• Size (L x W x H): 312 x 362 x 346 mm
• Dry Weight: 15.1 kg
